MIDI Router
Created by Eric Bateman (eric@timeline85.com) Released under GPLv3
Readme last updated 2024-07-29
MIDIRouter is a hardware MIDI processor. It routes and translates messages to/from hardware DIN, USB Devices, and a USB Host (DAW).
GETTING STARTED: * Hardware - prototype dev kits available in limited quantities for active contributors/devs, email eric (at) timeline85.com for more info. Otherwise see hardware listed below and DIY. * Submodules - make certain to run "git submodule update" from the root repository directory, it should add the GSL1680 touchscreen library to the lib directory * Building - the project is currently set up to work with VSCode and Platformio. See “howto_build.txt”
Hardware:
Teensy 3.6 with USB panel mount pig-tails, red 5v power cut from USB-B (DAW) connector, leave 5v connected for USB-A (DEVICE) connector. https://www.pjrc.com/store/teensy36.html
Display - ER-TFTM050A2-3-3661 https://www.buydisplay.com/default/5-inch-tft-lcd-display-capacitive-touchscreen-ra8875-controller-800x480 -This display uses the RA8875 display (SPI) and GSL1680 (I2S) touch drivers.
MIDI hardware follows electrical spec: https://www.midi.org/specifications-old/item/midi-din-electrical-specification (Transmit resistors are 47ohm for 3.5v serial from TEENSY)
DMX not yet incorporated into prototype, but will share serial6 TX line with MIDI6, and use this circuit: https://i.stack.imgur.com/0ZBnO.png
Eurorack connections use TEENSY I/O and DAC with op-amps as appropriate.
Playback Wing
Concept by Survivor Sound (http://www.survivorsound.com/)
Proof of concept prototype developed by Eric Bateman in 2018

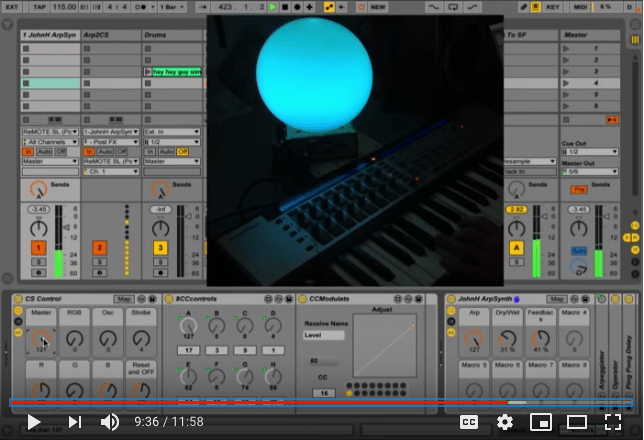

MIDI DEMO VIDEO (with cat at the end)
LCD DEMO VIDEO
Playback Wing is a portable MIDI powered lighting controller with LCD, meant for use with GrandMA lighting consoles.
Features: * Super thick (3/16") PCB, takes any abuse you can throw at it * PCB uses a custom switch footprint that can accomodate either CherryMX or 5500 series switches, with or without LEDs. Create your own layout! * USB and hardware DIN MIDI * Optional LCD
ColorSynth
MIDI Controlled Light Synthesizer
Created by Eric Bateman
ColorSynth is a MIDI controlled sculpture and light synthesizer.
* Lightning fast strobe and oscillators, written in PIC assembly
* Super bright 3W RGB LEDs
* Power over MIDI, daisy chainable
* Responds to note on and control change events, instant lighting for your MIDI equipped instrument
Visit http://www.colorsynth.com
DAW Controller
Concept design for a DAW controller with LCD, encoders, and RGB pushbuttons.
Developed by Eric Bateman
Mackie HUI Emulation
A full implementation of the Mackie control protocol using Max/MSP
Developed by Eric Bateman
Requirements for Max4Live: * lh_midiin and lh_midiout by Leigh Hunt * Live 9 32bit (lh_midiout doesn't support 64 bit) * Max for Live 7
ColorSynth DMX
163 DMX RGB pixels for a Burningman 2013 geodesic dome located at camp Morning Cookie
Designed and assembled by Eric Bateman
BMP to DMX mapping done in collaboration with Craig Dorety (http://craigdorety.com/)
ColorSynth DMX RGX pixels are three channel DMX fixtures. Programmed in assembly, the channels are software defined.
